| PART |
Description |
Maker |

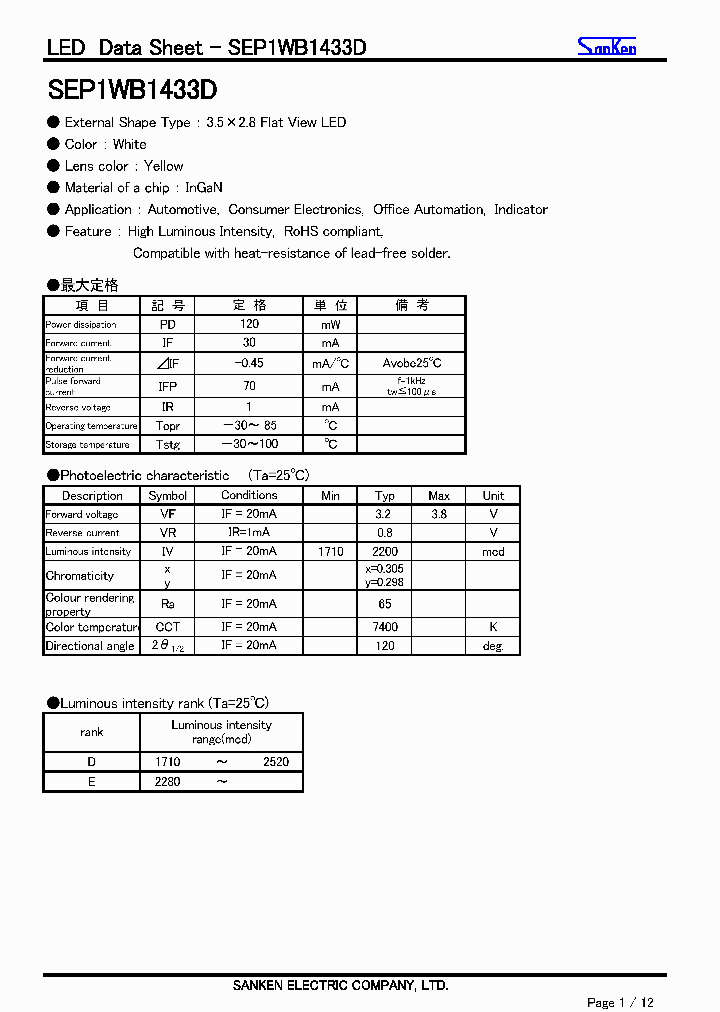

| SEP1WB1433D |
High Luminous Intensity, RoHS compliant
|
Sanken electric
|
| E28 E116 E113 E30 E106 E103 E105 E112 E209 E3 E100 |
Yellow, mini LED. Lens translucent. Luminous intensity at 10mA: 2.0mcd(min), 3.5mcd(max). Forward voltage at 20mA: 2.1V(typ), 2.5V(max).
Orange InGaAIP, T-1 3/4, ultra bright LED. Lens orange translucent. Luminous intensity at 20mA: 700mcd(min), 3000mcd(max). Forward voltage at 20mA: 1.8V(typ), 2.3V(max).
Super bright green, mini LED. Lens translucent. Luminous intensity at 10mA: 10.0mcd(min), 16.0mcd(max). Forward voltage at 20mA: 2.2V(typ), 2.5V(max).
Green T-1, right angle LED(3mm). Lens diffused. Luminous intensity at 10mA: 5.0mcd(typ), 20.0mcd(max). Forward voltage at 20mA: 2.2V(typ), 2.5V(max).
Red T-1, right angle LED(3mm). Lens diffused. Luminous intensity at 10mA: 12.5mcd(typ), 32.0mcd(max). Forward voltage at 20mA: 2.0V(typ), 2.5V(max).
T-1 bright white LED / Lens clear
Miniature LEDs 微型发光二极
Orange, mini LED. Lens translucent. Luminous intensity at 10mA: 3.0mcd(min), 7.0mcd(max). Forward voltage at 20mA: 2.0V(typ), 2.6V(max).
Yellow T-1, right angle LED(3mm). Lens diffused. Luminous intensity at 10mA: 5.0mcd(typ), 20.0mcd(max). Forward voltage at 20mA: 2.1V(typ), 2.5V(max).
High efficiency red, mini LED. Lens translucent. Luminous intensity at 10mA: 4.0mcd(min), 7.0mcd(max). Forward voltage at 20mA: 2.0V(typ), 2.5V(max)(max).
Ultra bright red, mini LED. Lens translucent. Luminous intensity at 10mA: 20.0mcd(min), 60.0mcd(max). Forward voltage at 20mA: 1.85V(typ), 2.5V(max)(max).
Yellow InGaAIP, T-1 3/4, ultra bright LED. Lens yellow translucent. Luminous intensity at 20mA: 400mcd(min), 1600mcd(max). Forward voltage at 20mA: 2.0V(typ), 2.5V(max).
|
Gilway Technical Lamp
International Light Technologies Inc.
International Light Technologies, Inc.
|
| 249-8072-3333-504 249-7870-3331-504 249-4167-3334- |
SINGLE COLOR LED, YELLOW, 7.1 mm PLASTIC PACKAGE-2
LED Lamp; LED Color:Red; Luminous Intensity:30ucd; Forward Voltage:10V; Color:Red; Leaded Process Compatible:No; Lens Style:(H x Dia) 31.0 x 8.40 mm; Lens Width:7.1; Mounting Type:Through Hole; Peak Reflow Compatible (260 C):No RoHS Compliant: No
LED Lamp; LED Color:Blue; Luminous Intensity:120ucd; Forward Current:10mA; Forward Voltage:14V; Operating Temperature Range:-20 C to 71 C; Color:Blue; Leaded Process Compatible:No; Lens Style:(H x Dia) 31.0 x 8.40 mm RoHS Compliant: No
|
Dialight PLC
DIALIGHT CORP
|
| OLS-150 OLS-150HSD-C-T OLS-150HSD-C-TD OLS-150HSD- |
Series 150 - 1206 Standard High luminous intensity
|
OSA Opto Light GmbH
|
| OLS-330HD-X-TD OLS-330HD-X-TU OLS-330HR-X-TD OLS-3 |
Series 330 - 1206 with Lens High luminous intensity
|
OSA Opto Light GmbH
|
| OLS-180HSD-C-T OLS-180HSD-CD-T OLS-180SUD-C-T OLS- |
Series 180 - 0805 lower height High luminous intensity
|
OSA Opto Light GmbH
|
| 559-3201-007 559-3101-001 559-3001-007 |
T-1 3/4 DUAL COLOR LED, YELLOW/GREEN, 5 mm
LED Lamp; LED Color:Red/Green; Luminous Intensity:20ucd; Forward Current:20mA; Forward Voltage:2.1V; Color:Red/Green; Leaded Process Compatible:No; Peak Reflow Compatible (260 C):No RoHS Compliant: No T-1 3/4 DUAL COLOR LED, RED/GREEN, 5 mm
LED Indicator; Bulb Size:5mm; LED Color:Red/Green; Luminous Intensity:20ucd; Viewing Angle:80 ; Forward Current:20mA; Forward Voltage:2.1V; Operating Temperature Range:-55 C to 100 C; Color:Red/Green RoHS Compliant: No
|
Dialight PLC
DIALIGHT CORP
|
| 591-3001-007F |
LED Lamp; Bulb Size:3mm; LED Color:Super Intensity Red/Green; Luminous Intensity:8ucd; Viewing Angle:40 ; Forward Current:10mA; Forward Voltage:2V; Operating Temperature Range:-55 C to ? C; Color:Super Red/Green RoHS Compliant: Yes
|
DIALIGHT CORP
|
| 595-2101-002F 595-2701-007F 595-2701-013F |
LED Lamp; Bulb Size:2mm; LED Color:Red; Luminous Intensity:25ucd; Viewing Angle:40 ; Forward Current:20mA; Forward Voltage:1.7V; Operating Temperature Range:-30 C to C; Color:Red; LED Gas Type:AlGaAs RoHS Compliant: Yes SINGLE COLOR LED, RED, 1.8 mm
LED Lamp; Bulb Size:2mm; LED Color:Yellow; Luminous Intensity:41mcd; Forward Current:20mA; Forward Voltage:2.02V; Operating Temperature Range:-30 C to 85 C; Color:AllnGaP Yellow; Leaded Process Compatible:Yes RoHS Compliant: Yes
SINGLE COLOR LED, YELLOW, 1.8 mm
|
Dialight PLC
DIALIGHT CORP
|
| HL16-RGB |
; Lens Color:Clear; Luminous Intensity (MSCP):R-32; G-42; B-204mW; Number of LEDs:3; Power Dissipation:3W RoHS Compliant: Yes TRIPLE COLOR DISPLAY CLUSTER, RED/GREEN/BLUE
|
Dialight PLC
|
